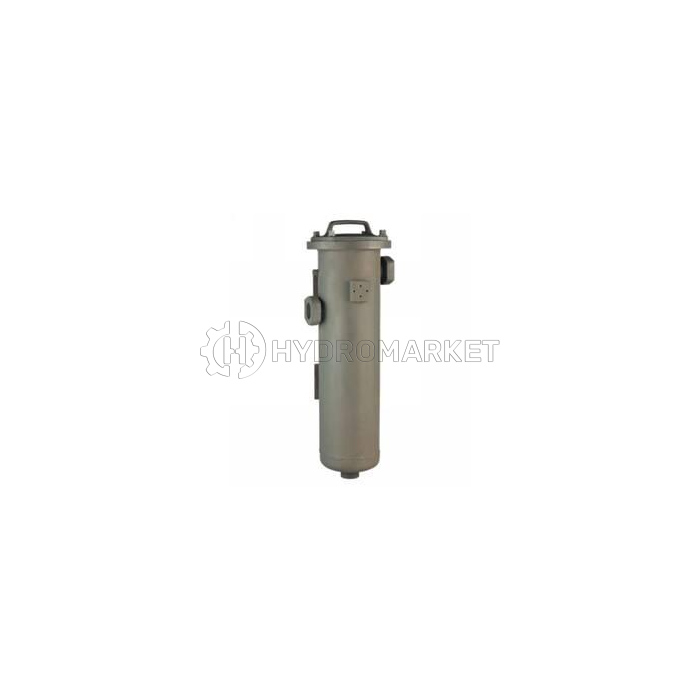

Filter linear Hydac seri RFLR

Filter linear Hydac series RFLR

Linear filters with magnetic candles

• Volume flow rate: up to 1200 l/min
• Pressure stages: up to 25 bar
• Connectors: from SAE DN 50 to SAE DN 100
• Sizes: 400, 600, 800, 1000, 1200
• Flow from inside to outside

The filter housings are designed in accordance with international standards. They consist of a filter housing and a cover.
Standard equipment:
mounting holes in the housing
oil drain plug
magnetic core, built into the cover
with bypass valve
port for clogging indicator

Hydac filters are approved by important industrial plants, guaranteed holding capacity under high pressure drop (100 bar).
Hydac filters meet the latest achievements in the field of filtration technology and, thanks to their properties, guarantee a significant increase in the service life of hydraulic system components.

Hydac pressure/linear filters are characterized by high filtration capacity and easy maintenance, ensuring the safety and economy of equipment operation. With the help of a wide range of linear and mesh technological filters from Hydac, you can solve almost any tasks in the field of solid and liquid phase separation.
