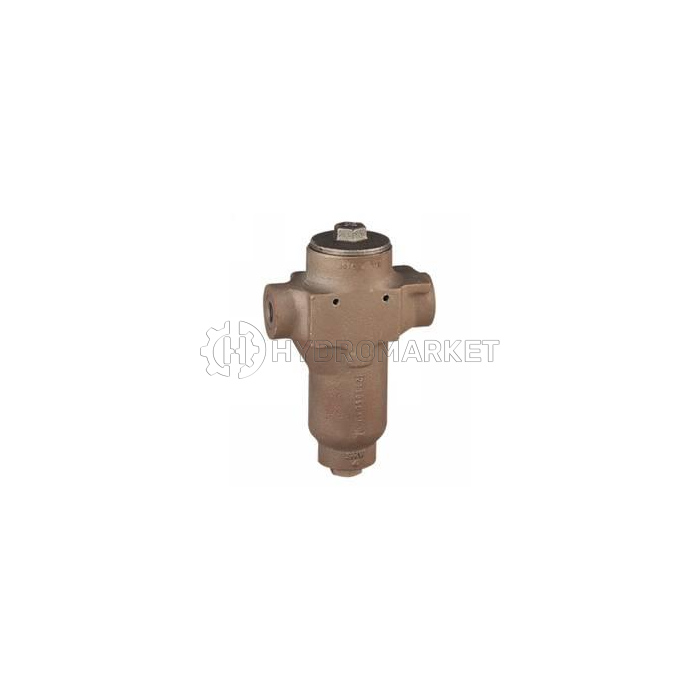

Filter linear Hydac series LFR, LPFR, MDFR.

Filter linear Hydac series LFR, LPFR, MDFR

LFR - Linear filters with magnetic candle

• Volumetric flow rate: up to 250 l/min
• Pressure stages: up to 120 bar
• Connectors: from G½ to G1½
• Sizes: 20, 45, 80, 150, 250
• Flow from inside to outside

LPFR - Linear filters with magnetic candle

• Volumetric flow rate: up to 250 l/min
• Pressure stages: up to 25 bar
• Connectors: from G½ to G1½
• Sizes: 20, 45, 80, 150, 250
• Flow from inside to outside

MDFR - Linear filters with magnetic candle

• Volumetric flow rate: up to 250 l/min
• Pressure stages: up to 250 bar
• Connectors: from G¾ to G1½
• Sizes: 45, 80, 150, 250
• Flow from inside to outside

Hydac filters are approved by major industrial plants, guaranteed retention capacity under high pressure difference (100 bar).
Hydac filters meet the latest achievements in the field of filtration technology and, thanks to their properties, guarantee a significant increase in the service life of hydraulic system components.

Hydac pressure/linear filters are characterized by high filtration capacity and easy maintenance, ensuring safety and cost-effectiveness of equipment operation. With a wide range of linear and mesh technological filters, Hydac can solve virtually any task in the field of solid and liquid phase separation.
