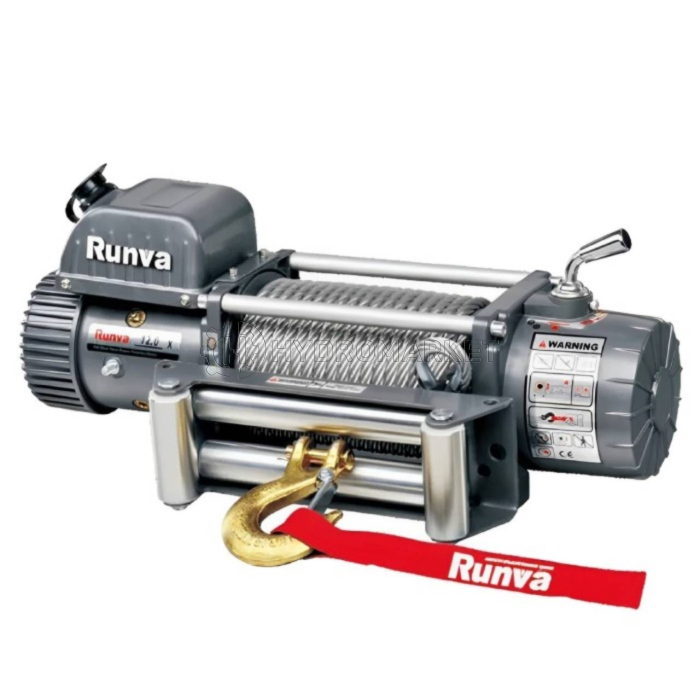

Electric Winch untuk kendaraan offroad Runva EWX 12000 lbs (5.4 Ton, DC 12v)

The EWX 12000 is a 12,000 lbs electric off-road winch from the EWX Series, designed for heavy-duty applications. It features a full steel gear system, a Runva patented three-stage planetary gear reducer, and a sliding geared ring clutch for enhanced performance. The winch is equipped with an automatic screw cone braking action for safety, and can be controlled via a wired remote switch or an optional wireless remote. It operates on a 12V DC power drive, making it suitable for off-road and tough environments.

Lihat produk ini di tokopedia! → Pergi ke tautan

Runva EWX 12000 Features:

• Full steel gear
• Runva patent three stage planetary gear reducer
• Sliding geared ring cluth
• Automatic screw cone braking action
• Remote control through control box and switch
• Wireless remote control available
• DC 12v Power drive

Spesifikasi Teknis:

• Motor:permanent magnet: 12V:Input:5.4kW/7.2hp;Output:2.7kW/3.6hp
• Brake: Automatic screw cone
• Geartrain: 3-stage planetary steel gear
• Gear reduction ratio: 230:1
• Clutch: Sliding geared ring clutch
• Cable(Dia×L): Ø13/32"×83.7’(Ø10.2mm×25.5m)
• Drum size(Dia×L): Ø2.48"×8.8"(Ø63mm×223mm)
• Mounting bolt pattern: 10"×4.5"(254×114.3mm)4-M10
• Net weight: 92.6lbs/42.0kgs
