Dongkrak Hidrolik 10 Ton Stroke 150mm – FCY-10150 untuk Angkat Berat

Dongkrak Hidrolik 10 Ton Stroke 150mm – FCY-10150 untuk Angkat Berat

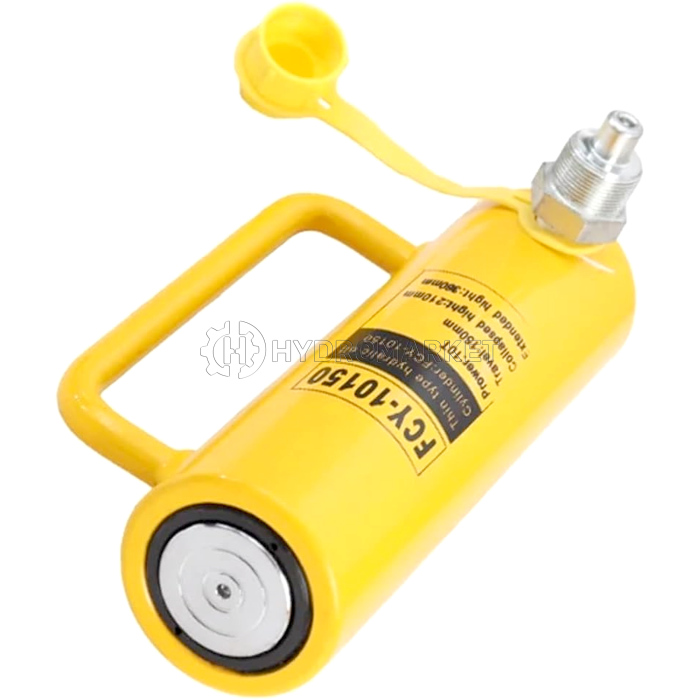

This hydraulic cylinder offering high tonnage capacity (10T) with a durable, corrosion-resistant painted surface. Its dustproof ring extends service life, while the cylinder requires a solid lifting surface for optimal operation. Key specs include a 150 mm stroke, 226 ml oil capacity. Compatible with CP-180 hand pump and ZCB-700A/D electric pumps.

Silinder hidraulik ini menawarkan kapasitas tonase tinggi (10T) dengan permukaan yang dicat tahan lama dan tahan korosi. Cincinnya yang tahan debu memperpanjang masa pakai, sementara silindernya membutuhkan permukaan pengangkatan yang kokoh untuk pengoperasian yang optimal. Spesifikasi utama termasuk stroke 150 mm, kapasitas oli 226 ml. Kompatibel dengan pompa tangan CP-180 dan pompa listrik ZCB-700A/D.

Fitur Utama Silinder Hidrolik 10 Ton FCY:

1. Lightweight and compact design for use in small working spaces.
2. The painted surface enhances corrosion resistance.
3. The dustproof ring reduces pollution and prolongs the service life of the hydraulic cylinder.
4. Lightweight and easy to carry, there are no two holes on the cylinder plane for fixed use.
5. For proper operation, all FPY series cylinders need to be connected to a solid lifting surface. For example, the use of thin oil cylinders on sandy, muddy or loose surfaces will cause damage to the oil cylinder.

Spesifikasi Teknis Hydraulic Cylinder 10 Ton:

• Model: FCY-10150
• Tonnage (Cylinder Capacity): 10 T
• Effective Area: 15.9 cm2
• Outer Diameter: 64 mm
• Inner Diameter: 44 mm
• Travel (Stroke): 150 mm
• Collapsed Height: 207 mm
• Extended Height: 357 mm
• Plunger Diameter: 38 mm
• Oil Capacity: 226 ml
• Weight: 4.7 kg
• Recommended Hand Pump: CP-180
• Recommended Electric Pump: ZCB-700A, ZCB-700D

• Model: FCY-10150
• Kapasitas Silinder: 10 T
• Area Efektif: 15.9 cm2
• Diameter Luar: 64 mm
• Diameter Dalam: 44 mm
• Stroke: 150 mm
• Tinggi Tertutup: 207 mm
• Tinggi Terbuka: 357 mm
• Diameter Plunger: 38 mm
• Kapasitas Oli: 226 ml
• Berat: 4.7 kg
• Pompa Manual yang Direkomendasikan: CP-180
• Pompa Elektrik yang Direkomendasikan: ZCB-700A, ZCB-700D
