Cop-S Stainless Steel Dirty Oil Filtration Machine

Persediaan
Deskripsi / Cop-S Stainless Steel Dirty Oil Filtration Machine

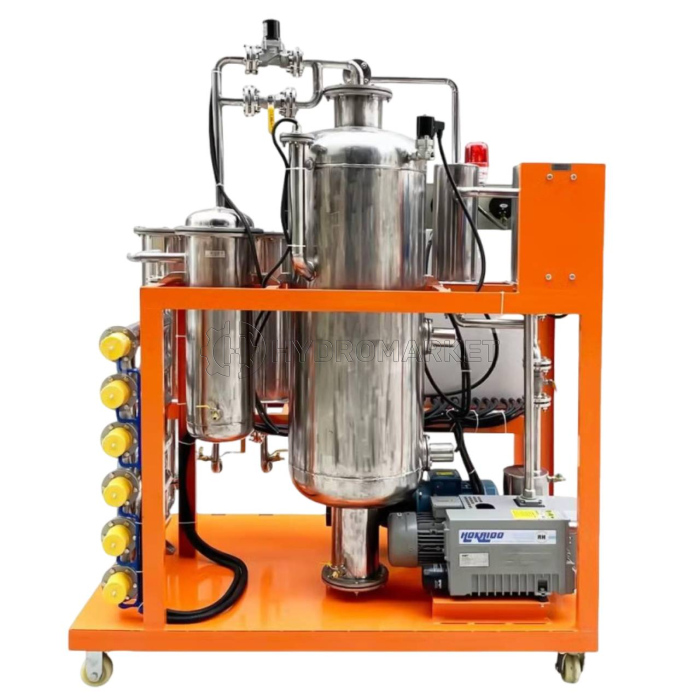

COP-S-100 Stainless Steel Dirty Cooking Oil Filtration Machine
Application:
COP oil filtration machine is special for filtering waste cooking oil, dirty vegetable oil, trench oil, swill oil, and animal oil. It effectively removes particles, odor, water, acid, alcohol, etc. from waste oil. The treated oil is clean, limpid, and smells good. It is widely used in fry food factories, oil restaurants, cooking oil factories, vegetable oil factories, and waste oil collecting stores.
For edible oil use, stainless steel body is recommended. For industrial use, carbon steel body is preferable. Available in skid and mobile (trailer) types depending on the workplace.
Features:
- Composed of two parts: a press filter and a vacuum oil purifier. The press filter removes large and small particles with filtration precision up to 1 micron. The vacuum system includes primary filter, water separator, and fine filter.
- The primary stainless steel filter is rust/corrosion-resistant and removes remaining particles before oil enters the water separator.
- The water separator with special filter removes bulk water. Waste cooking oil often contains high water content which is eliminated in this stage.
- Vacuum separator uses duplex 3D film evaporation. Since oil purification occurs under vacuum and low pressure, oil is heated only to 45°C, preserving its properties.
- Final filtration stage uses a stainless steel filter with holes smaller than 1 micron to ensure crystal-clear oil.
Technical Parameters:
Parameters | Unit | COP-S-10 | COP-S-20 | COP-S-30 | COP-S-50 | COP-S-100 | COP-S-150 | COP-S-200 | COP-S-300 |
---|---|---|---|---|---|---|---|---|---|
Flow Rate | L/min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 |
Working Vacuum | MPa | -0.06 ~ -0.095 | |||||||
Working Pressure | MPa | ≤0.4 | |||||||
Temperature Range | ºC | 0 ~ 100 | |||||||
Power Supply | 380V, 50Hz, 3 phase (or as needed) | ||||||||
Working Noise | dB(A) | ≤75 | ≤75 | ≤75 | ≤78 | ≤78 | ≤78 | ≤80 | ≤82 |
Heating Power | KW | 36 | 40 | 45 | 72 | 80 | 90 | 120 | 135 |
Total Power | KW | 38 | 42 | 47 | 75 | 87 | 101 | 135 | 147 |
Inlet/Outlet | mm | 25 | 25 | 25 | 32 | 42 | 50 | 50 | 60 |
Net Weight | Kg | 450 | 550 | 600 | 750 | 850 | 1000 | 1200 | 1500 |
Overall Dimensions (L×W×H) | mm | 1500×1000×1200 | 1500×1050×1600 | 1500×1050×1650 | 1600×1150×1700 | 1750×1250×1800 | 1900×1600×1950 | 1900×1700×2000 | 2100×1700×2100 |
Informasi Lebih Lanjut
Negara | Baru |
---|---|
Masa garansi, bulan | 12 |
Negara Asal | Cina |
Merek | Toptester |
