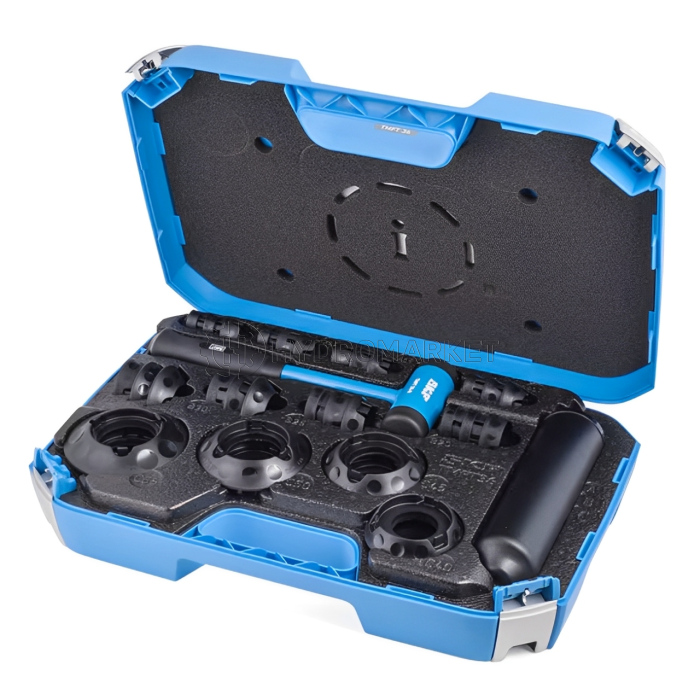

Bearing Fitting Tool Kit SKF TMFT 36 Bearing Installation and Removal Tool

The TMFT 36 Bearing Fitting Tool facilitates the mounting of different bearings with bore diameters from 10 – 55 mm (0.39 – 2.17 in). The right combination of impact ring and sleeve allows effective transmission of mounting force to the bearing ring with the interference fit, minimising the risk of damaging the bearing’s raceways or rolling elements. The TMFT 36 is also suitable for mounting other components such as bushings, seals and pulleys.

Lihat produk ini di tokopedia! → Pergi ke tautan

Fitur Bearing Fitting Tool Kit:

• Facilitates correct mounting on shaft, housing and blind applications
• The diameter of the impact ring precisely fits the inner and outer diameter of the bearing
• Impact rings and sleeves are made of high impact resistant material for longevity and are also suitable for use under a press
• Impact rings are marked for clear visual identification of the ring’s size and easy selection
• The nylon double-side head of the dead-blow hammer helps to prevent damaging the components
• All items packed in a strong, lightweight toolcase with comprehensive instructions and appicable bearing selection chart

Spesifikasi Teknis Fitting Tool:

• Model: TMFT 36
• Workpiece bore diameter: 10.0 – 55.0 mm
• Workpiece outer diameter: 26.0 – 120.0 mm
• Sleeve outer lengths: A 228 mm; B 235 mm; C 245 mm
• Sleeve outer diameter: A 25 mm; B 45 mm; C 66 mm
• Hammer length: 315 mm
• Hammer width: 115 mm
• Case dimensions (l x h x w): 530 x 110 x 360 mm


• Recommended applications: For manual mounting of bearings, bushings, seals, rings, pulleys in industrial, construction and agricultural applications
• Mounting force generation: Hammer
• Suitable for workpiece mounting on a Cylindrical seating (straight shaft): Yes
• Suitable for workpiece mounting in a Blind arrangement (housing with shaft): Yes
• Suitable for workpiece mounting in a Housing: Yes
• Mounting depth: A 221 mm; B 221 mm; C 226 mm
• Provided with Handprotectors: No
• Models of rings: Three, named A,B,C
• Number of rings: 36
• Ring material: Impact resistant polyamide (PA)
• Number of sleeves: Three, named A,B,C
• Sleeve material: Glassfiber filled polyamide (PA)
• Hammer type: Deadblow hammer
• Hammer weight: 0.9 kg
• Hammerhead: Sturdy polyurethane (PU) preventing damage to the sleeve heads
• Hammer material: Steel, PU
• Allowed temperature of the mounting object: -30.0 – 110.0 C
• Total product weight: 4.4 kg

Paket Produk:

• 12x Impact rings A
• 12x Impact rings B
• 12x Impact rings C
• 1x Impact sleeve A
• 1x Impact sleeve B
• 1x Impact sleeve C
• 1x Hammer
• 1x printed instructions for use
• 1x Carrying case (size C)
