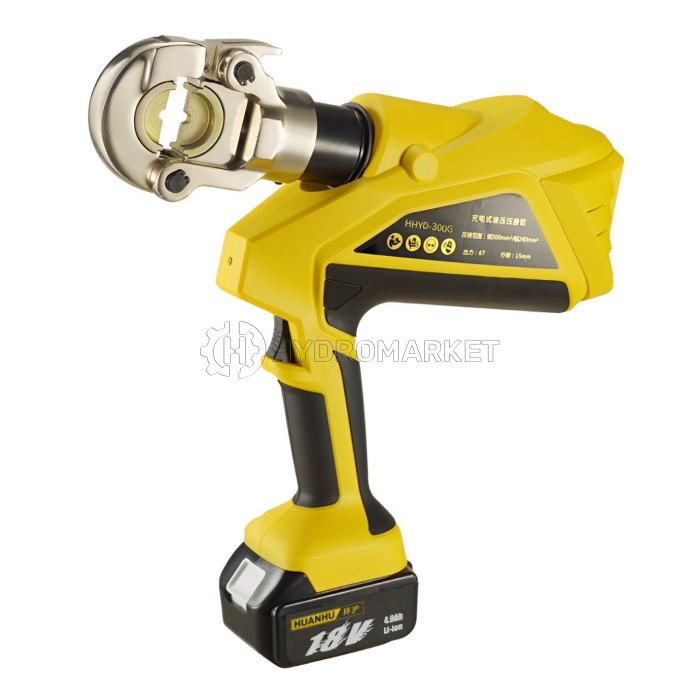

Battery Crimping Tool HHYD-300G (16-300 mm2) / Tang Press Skun Hidrolik

HHYD-300G adalah alat crimping hidrolik (tang press skun hidrolik, tang skun kabel) bertenaga 6 ton yang dirancang untuk efisiensi dan daya tahan dalam lingkungan industri. Alat ini dilengkapi dengan kepala crimping yang ringkas untuk digunakan di ruang sempit, layar OLED untuk status operasional, dan sistem keamanan dengan reset otomatis serta peringatan kesalahan. Sistem hidrolik dua tahap memastikan crimping yang cepat dan presisi, mampu menyelesaikan hingga 320 siklus per pengisian baterai. Ditenagai oleh baterai lithium 18V 4.0Ah dengan pengisi daya cepat, alat ini mendukung rentang crimping dari 16–300 mm2 dan dilengkapi dengan 11 cetakan crimping yang dapat diganti.

Lihat produk ini di tokopedia! → Pergi ke tautan

Fitur Utama Tang Press Skun HHYD-300G:

1. Compact crimping head design suitable for operations in confined spaces.
2. OLED display screen showing operating status. Red LED indicator and audible alert for malfunctions.
3. Two-stage hydraulic system: fast advancement without load, followed by high-pressure advancement during crimping, significantly reducing operation time.
4. Long lifespan of 10,000 cycles, adhering to international industry standards.
5. Automatic reset: returns to the initial position upon crimp completion, enabling quick preparation for the next cycle.
6. Manual reset option available in case of errors.
7. Built-in safety feature: automatically stops operation upon completion of the cycle.
8. Powered by a robust 18V lithium battery with an import-quality charger. Battery level indicator included, with a 6.5A fast charger compatible with 110V–220V power sources.
9. Ergonomic design: optimized weight distribution with dual handles for comfortable operation.

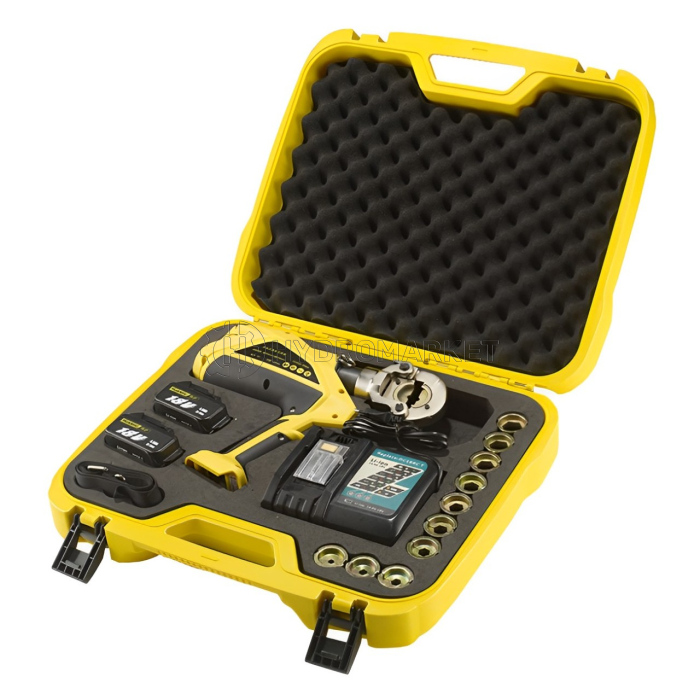

10. Durable construction suitable for industrial use, with dedicated storage space for tools and accessories.

Spesifikasi Teknis:

• Model: HHYD-300G
• Output: 6 tons
• Crimping Range: 16–300 mm2
• Stroke: 15 mm
• Single Crimping Time: 3–6 seconds (depending on cable diameter)
• Battery Pack Capability: 320 crimp cycles
• Battery: 18V 4.0Ah lithium battery
• Included Crimping Dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm
  Weight: 13.7 kg
• Package Dimensions: 585x500x170 mm


• Model: HHYD-300G
• Output: 6 ton
• Rentang Crimping: 16–300 mm2
• Pukulan: 15 mm
• Waktu Crimping Tunggal: 3–6 detik (tergantung pada diameter kabel)
• Kapasitas Paket Baterai: 320 siklus crimp
• Baterai: Baterai lithium 18V 4.0Ah
• Matriks Crimping yang Disertakan: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm
• Berat: 13,7 kg
• Dimensi Paket: 585x500x170 mm
