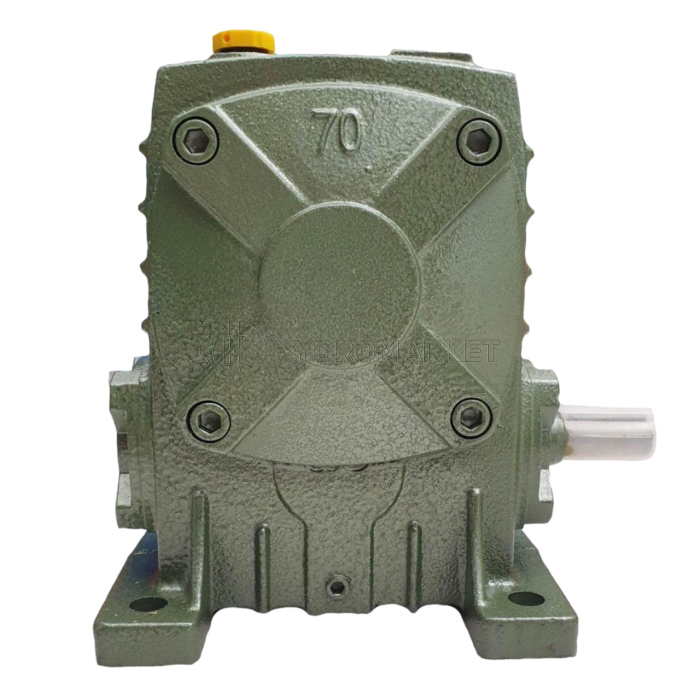

AMW Speed Reducer Gear Box WPA 70 (1:10)

AMW Speed Reducer Gear Box WPA 70 (Ratio 1:10)

The AMW WPA 70 worm-gear speed reducer is a heavy-duty gearbox designed to reduce rotation speed and increase torque for demanding industrial and mechanical applications. With a 1:10 reduction ratio, it provides strong torque, stable output, and smooth, low-noise operation, making it suitable for continuous use in various types of machinery.

Main Features

• Model: WPA 70
• Reduction ratio (this version): 1:10
• Available ratios: 1:10, 1:20, 1:30, 1:40, 1:50 & 1:60 (please confirm stock availability)
• Robust and durable construction for long service life
• Smooth, low-noise worm-gear transmission
• High torque output, ideal for heavy-duty use
• Suitable for industrial, agricultural, and mechanical equipment

Technical Specifications

• Size: 70
• Input shaft diameter: 18 mm
• Output shaft diameter: 28 mm
• Dimensions (L × W × H, excluding shafts): 236 × 150 × 190 mm
• Net weight: 15 kg

How the Ratio Works

• Ratio 1:10: 10 rotations of the input shaft produce 1 rotation of the output shaft.
• Ratio 1:60 (optional): 60 rotations of the input shaft produce 1 rotation of the output shaft.
