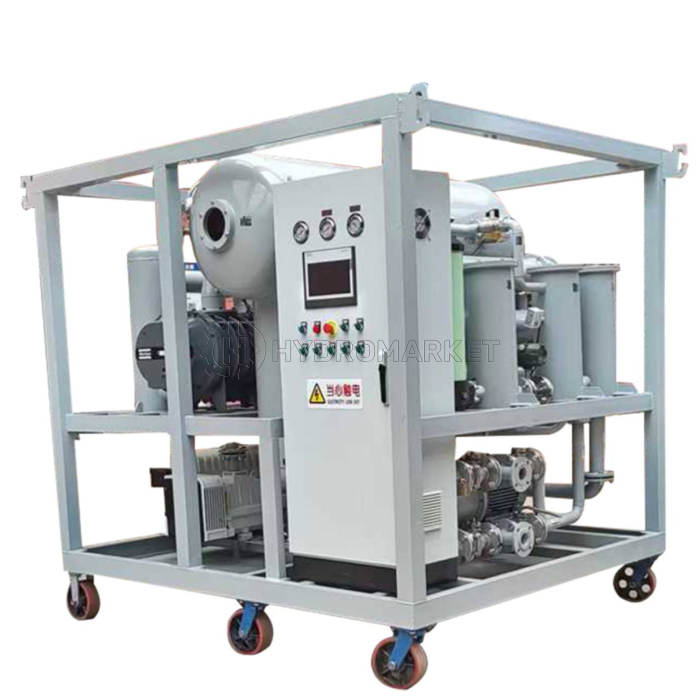

9000L/H Mobile Transformer Oil Purifier

9000L/H Mobile Transformer Oil Purifier

The 9000L/H Mobile Transformer Oil Purifier (Model HZLY-150A) is a powerful and reliable solution designed for efficient purification and maintenance of transformer insulating oil. Ideal for industrial and field applications, this equipment effectively removes moisture, dissolved gases, and solid impurities to restore and maintain the oil’s dielectric strength and ensure the safe operation of electrical transformers.

Technical Specifications

• Model: HZLY-150A
• Rated Flow Rate: 9000 L/h
• Effective Oil Throughput: 150 L/min
• Pumping Speed: 1080 m³/h
• Working Pressure: ≤ 0.4 MPa
• Operating Oil Temperature: 0–80°C
• Power Supply: 380V, 50Hz, 3-phase, 3-wire
• Heating Power: 135 kW (independently controlled in two groups)
• Total Power: 147 kW
• Operating Noise: ≤ 75 dB(A)
• Inlet/Outlet Flange: DN50
• Vacuum Interface Flange: DN50
• Dimensions (L × W × H): 205 × 195 × 215 cm
• Equipment Weight: 1860 kg
• Continuous Operating Time: ≥ 200 hours
• Mean Time Between Failures: ≥ 5000 hours

Oil Purity Indicators

Product Features

• Efficiently removes moisture from oil.
• Extracts dissolved gases from the oil.
• Eliminates solid particles and impurities.
• Facilitates on-site transformer oil purification and vacuum drying of electrical equipment.
• Enables hot oil circulation drying directly at the transformer site.
• Capable of oil processing and vacuum maintenance for transformers with capacities between 20 and 60 m³.
