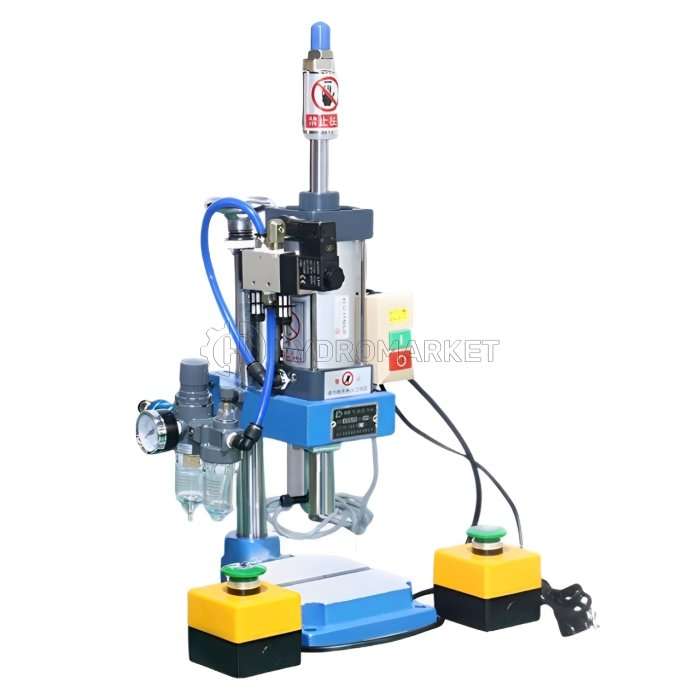

200kg Pneumatic Punching Machine / Small Pneumatic Press / Standard + Dual-Button Type Safety / Satu Kolom Pneumatik Tekan

Pneumatic Punching Machine, Small Pneumatic Press, Pneumatic Punch Press, Punch press, Air press, Pneumatic small punch /// Satu Kolom Pneumatik Tekan, Pneumatik Mesin Meninju, Mesin Press Pneumatik Kecil, Mesin Press Pukulan Pneumatik

Configuration: Standard + Dual-Button Type

Lihat produk ini di tokopedia! → Pergi ke tautan

Standard + Dual-Button Type requires both hands to press the dual buttons simultaneously to start operation. When the buttons are released, the cylinder returns. The dual-button design is safer and allows only single-operation cycles.

The Pneumatic Punching Machine is a compact, high-efficiency Air Press designed for precision punching, cutting, forming, and riveting. This Small Pneumatic Press operates using compressed air, reducing labor effort while ensuring smooth and quiet performance. Featuring a dual-button safety system, it allows controlled single-operation cycles, making it ideal for industries like electronics, metalwork, and textiles. With adjustable pressure (200kg), precision guidance, and multiple control modes (manual, semi-auto, automatic), this Pneumatic Punch Press is both versatile and reliable. The Punch Press is built with a durable high-strength housing, supports AC220V/DC24V operation, and weighs 16kg, making it perfect for precision manufacturing applications.

Fitur Utama Pneumatic Punching Machine:

1. Uses compressed air as a power source, providing high efficiency and easy operation. Reduces labor force and is suitable for manual operation and automated production lines.
2. Simple structure, easy operation, low cost, and excellent performance. No noise from oil systems or electric motors, saving energy and reducing production costs, making it highly cost-effective.
3. Easy to adjust—just modify the air pressure to achieve the required force. Equipped with mechanical guide rods and blocks for high precision, making it suitable for precision stamping. Can be adjusted for height, speed, stroke, pressure, and stamping time based on different products and molds.
4. Dual-hand control buttons safety.
5. Uses a microcomputer control system with manual, semi-automatic, and fully automatic operation options. Additional control devices can also be added.
6. Suitable for electronics, instruments, meters, cameras, metal parts, clothing, and footwear industries.
7. Can perform cutting, punching, blanking, forming, bending, and riveting on thin plates, strips, and coils.
8. Suitable for processing non-ferrous metals and plastic parts.
9. Provides quantity statistics for the production process.
10. Voltage: AC220V input / DC24V output.
11. Housing: Made of high-strength single-material injection molding, aesthetically pleasing, sturdy, and durable.

Spesifikasi Teknis Mesin Press Pneumatik:

• Model: 63 Standard Configuration +
• Cylinder Specifications: 63-75-50
• Worktable Size: 150×135mm
• Working Height: 200mm
• Punch Head Inner Hole: Φ16mm
• Column Diameter: Φ30mm
• Total Column Length: 350mm
• Throat Depth: 80mm
• T-slot: M12
• Air Inlet Pipe: 8×5mm
• Total Machine Weight: 16kg
• Control Method: Pneumatic/Electric
