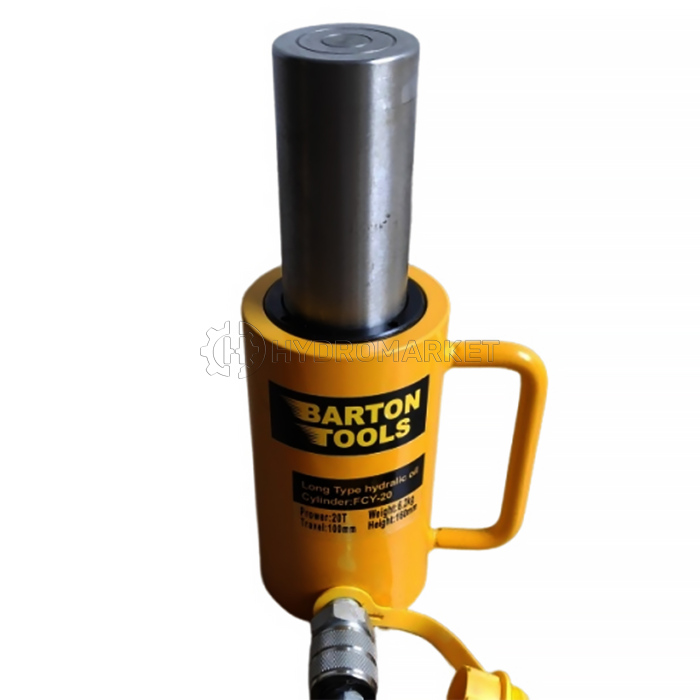

Silinder Hidrolik Medium FCY 20 Ton 100mm BARTON
BARTON HIDROLIK
Main image
Click to view image in fullscreen
![]()
Model FCY-20Pump System Single ActingCylinder Capacity @700 Bar 20 Ton / 198 KNStroke 100 mmEffective Area 33.16 cmOil Capacity 311 mlClosed Height 160 mmExtended Height 260 mmOutside Diameter 88 mmInside Diameter 80 mmPiston Rod Diameter 65 mmHandle YesRecommended Pump Minimum 700mlUnit Weight 6.2 kgPacking Weight 7 kgPacking Dimension 150x100x190 mm
Persediaan
SKU
m_10009968
Rp 5.820.000,00
Deskripsi / Silinder Hidrolik Medium FCY 20 Ton 100mm BARTON
Model FCY-20
Pump System Single Acting
Cylinder Capacity @700 Bar 20 Ton / 198 KN
Stroke 100 mm
Effective Area 33.16 cm
Oil Capacity 311 ml
Closed Height 160 mm
Extended Height 260 mm
Outside Diameter 88 mm
Inside Diameter 80 mm
Piston Rod Diameter 65 mm
Handle Yes
Recommended Pump Minimum 700ml
Unit Weight 6.2 kg
Packing Weight 7 kg
Packing Dimension 150x100x190 mm
Informasi Lebih Lanjut
| Tipe silinder | SATU ARAH |
|---|---|
| Kapasitas beban maksimum (t) | 20,00 т |
| Tipe pemasangan silinder | Mata ikan |
| Maks. tekanan kerja (bar) | 700,00 |
| Berat, kg | 7 |
| Negara | Baru |
| Masa garansi, bulan | 12 |
| Merek | Barton Hidrolik |
| Negara Asal | Indonesia |
