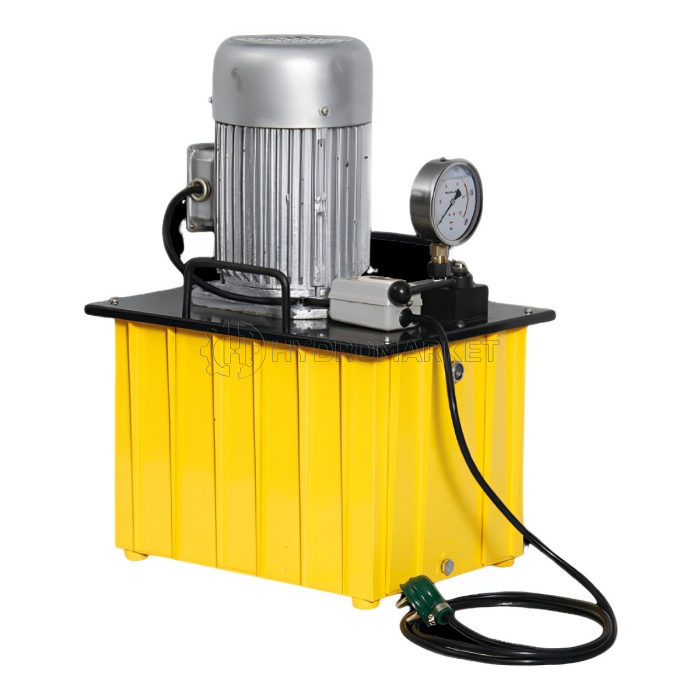

1.5KW, 35L Heavy-Duty Electric Hydraulic Pump / Power Pack Hidrolik HHB-630M

The HHB-630M is a heavy-duty electric hydraulic pump (hydraulic oil pump station) designed for ultra-high-pressure applications. Featuring a manual control valve, it offers precision and reliability for powering medium to large-sized cylinders or tools. With a robust 1.5 kW motor, it provides a low-pressure flow rate of 10 L/min and a high-pressure flow rate of 1.5 L/min, accommodating a 35L oil capacity. Capable of operating at pressures up to 700 Bar, this pump ensures high performance and efficiency.

Lihat produk ini di tokopedia! → Pergi ke tautan

Fitur Utama Power Pack Hidrolik HHB-630M

• With safety valve to release the pressure when over-loading.
• Two-speed pump operation reduces cycle times for improved productivity.
• 35L Oil useable oil capacity suitable for powering medium to big size cylinders or tools.
• With manual control valve.


• Dilengkapi dengan katup pengaman untuk melepaskan tekanan saat kelebihan beban.
• Operasi pompa dua kecepatan mengurangi waktu siklus untuk meningkatkan produktivitas.
• Kapasitas minyak yang dapat digunakan 35L cocok untuk menggerakkan silinder atau alat berukuran sedang hingga besar.
• Dilengkapi dengan katup kontrol manual.

Spesifikasi Teknis:

• Model: HHB-630M
• Power: 1.5 Kw
• Low pressure flow rate: 10 L/Min
• High pressure flow rate: 1.5 L/Min
• Oil Capacity: 35 L
• Low Pressure: 20 Bar
• High Pressure: 700 Bar
• Packing Weight 55.4 kg
• Packing Dimension 500x380x700 mm


• Model: HHB-630M
• Daya: 1,5 kW
• Laju Aliran Tekanan Rendah: 10 L/menit
• Laju Aliran Tekanan Tinggi: 1,5 L/menit
• Kapasitas Minyak: 35 L
• Tekanan Rendah: 20 Bar
• Tekanan Tinggi: 700 Bar
• Berat Kemasan: 55,4 kg
• Dimensi Kemasan: 500x380x700 mm
