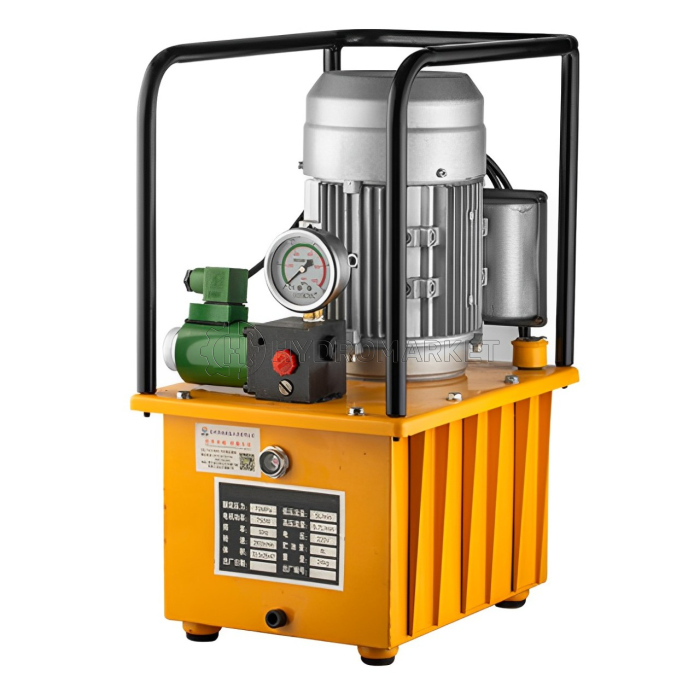

0.75KW, 8L Hydraulic Heavy Duty Electric Pump / Single Acting Pompa Hidrolik Power Pack ZHH700B

The ZHH700B Electric Hydraulic Pump is a powerful and compact solution for a variety of hydraulic applications. With a 750W motor and a 220V power supply, it delivers high pressure of up to 70MPa and low pressure of ≤2.5MPa. The pump features manual pedal switches for easy control and a solenoid valve for oil return. It's ideal for use with hydraulic lifting tools, pressure-shaping tools, pipe benders, demolition tools, and more. With an oil capacity of 8L (5L effective), it provides reliable performance in both high and low-pressure hydraulic systems.

Lihat produk ini di tokopedia! → Pergi ke tautan

Pompa Hidrolik Elektrik (Pompa Hidrolik Power Pack) ZHH700B adalah solusi yang kuat dan kompak untuk berbagai aplikasi hidrolik. Dengan motor 750W dan suplai daya 220V, pompa ini menghasilkan tekanan tinggi hingga 70MPa dan tekanan rendah ≤2,5MPa. Pompa ini dilengkapi dengan sakelar pedal manual untuk kontrol yang mudah dan katup solenoid untuk pengembalian minyak. Ideal digunakan dengan alat angkat hidrolik, alat pembentuk tekanan, pembengkok pipa, alat pembongkar, dan lainnya. Dengan kapasitas oli 8L (5L efektif), pompa ini memberikan kinerja yang andal pada sistem hidrolik dengan tekanan tinggi dan rendah.

Fitur Utama Power Pack Hidrolik ZHH-700B:

1. Large tonnage single acting soleniod valve control electric pump is with high pressure, convenient for maintenance. With manual pedal switches could make jacks move up and down freely. With solenoid valve control oil return.
2. The pump is widely used. It can be used as a source of hydraulic machinery of all kinds of pressure, but also as a variety of high, medium and low pressure hydraulic source experiment.
3. The hydraulic lifting tools, pressure-shaping tools, pipe bender, straightening tools, demolition tools, punching tools could be assembled with this kind of pump.

Spesifikasi Teknis:

• Model: ZHH700B
• Power: 750W
• Voltage: 220V
• High-Pressure: 70Mpa
• Low-Pressure: ≤2.5Mpa
• High-Pressure Flow: 0.6L/min
• Low-Pressure Flow: 3.5L/min
• Oil Capacity: 8L (Effective Oil Capacity: 5L)
• Product Dimensions: Length 33.5 * Width 26 * Height 47 CM
• Net Weight: Approx. 30kg


• Model: ZHH700B
• Daya: 750W
• Tegangan: 220V
• Tekanan Tinggi: 70Mpa
• Tekanan Rendah: ≤2.5Mpa
• Aliran Tekanan Tinggi: 0.6L/menit
• Aliran Tekanan Rendah: 3.5L/menit
• Kapasitas Oli: 8L (Kapasitas Oli Efektif: 5L)
• Dimensi Produk: Panjang 33,5 * Lebar 26 * Tinggi 47 CM
• Berat Bersih: Sekitar 30kg
