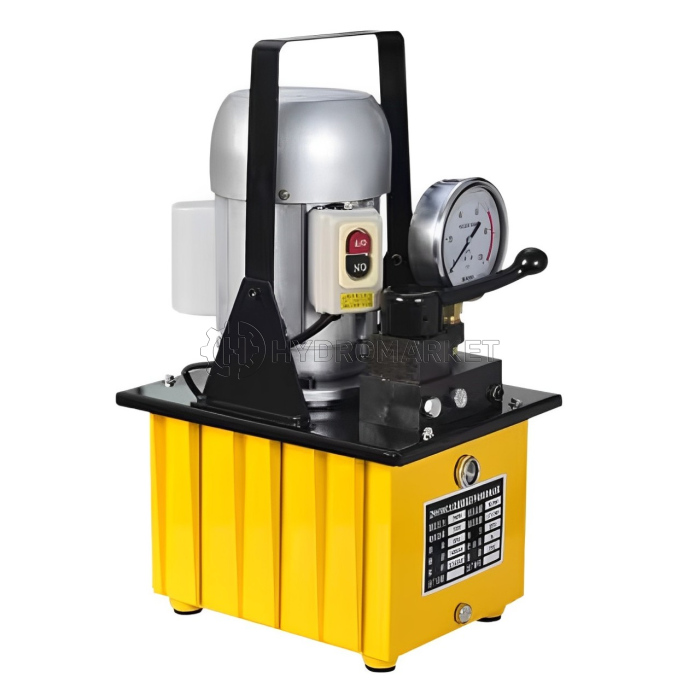

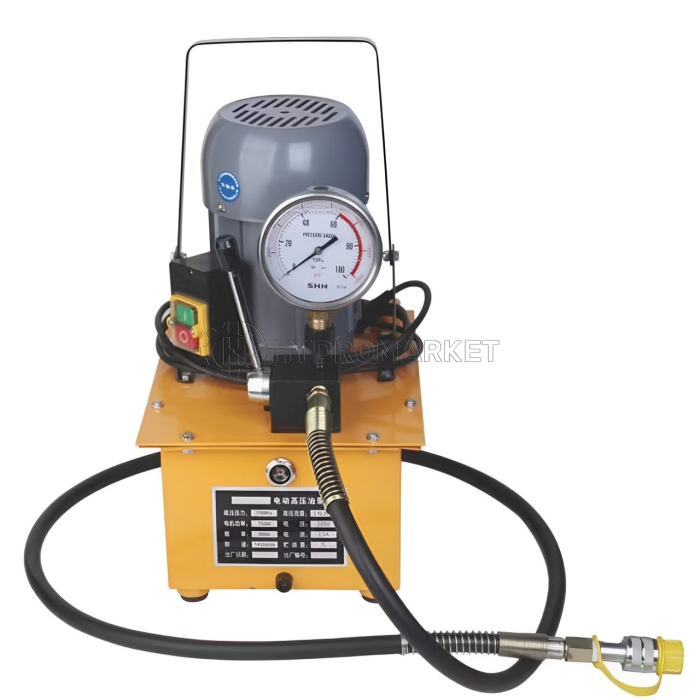

0.75KW, 7L Foot-operated Electric Pump / Single Acting Hidrolik Power Pack ZCB-700A

The ZCB-700A is a foot-operated electric hydraulic power pack (Pompa Listrik Hidrolik) with a 0.75 kW motor, designed for efficient oil output in various applications. It operates with both high and low-speed stages to provide quick oil delivery, with turbine oil absorption ensuring maximum effective oil volume. The pump features manual pressure holding and a safety valve to prevent overpressure damage, releasing pressure automatically at 700 kg/cm2. The high pressure is used for driving the piston, while low pressure is for piston reset. With an oil capacity of 7 liters, it provides a low-pressure flow rate of 5 L/min and a high-pressure flow rate of 0.9 L/min, operating at 70 Bar low pressure and 700 Bar high pressure.

Lihat produk ini di tokopedia! → Pergi ke tautan

Fitur Utama Power Pack Hidrolik ZCB-700A

• Manual pressure holding.
• High and low speed two stage for quick oil output. Turbine oil absorption could ensure max. Effective oil volume.
• Pressure safety valve over pressure unit could avoid over pressure damage. At 700kg/cm2, automatically pressure release.
• High pressure is for driving piston and low pressure is for piston reset.
• Oil pipe fitted with quick coupling could be ordered at any length.
• Oil pipe coupling fitted with PT 3/8" thread.


• Penahanan tekanan manual.
• Dua tahap kecepatan tinggi dan rendah untuk keluaran oli yang cepat. Penyerapan oli turbin dapat memastikan volume oli maksimal yang efektif.
• Katup keselamatan tekanan unit over-pressure dapat menghindari kerusakan akibat tekanan berlebih. Pada 700 kg/cm2, tekanan akan dilepaskan secara otomatis.
• Tekanan tinggi digunakan untuk menggerakkan piston, sedangkan tekanan rendah digunakan untuk pengaturan ulang piston.
• Pipa oli yang dilengkapi dengan kopling cepat dapat dipesan dengan panjang sesuai kebutuhan.
• Kopling pipa oli dilengkapi dengan ulir PT 3/8".

Spesifikasi Teknis:

• Model: ZCB-700A
• Power Rating: AC220V 50Hz, 0.75 kW
• Low pressure flow rate: 5 L/Min
• High pressure flow rate: 0.9 L/Min
• Oil Capacity: 7 L
• Low Pressure: 70 Bar
• High Pressure: 700 Bar
• Packing Weight 24.8 kg
• Packing Dimension 36.5x27.5x45.5 mm


• Model: ZCB-700A
• Daya: AC220V 50Hz, 0.75 kW
• Laju Aliran Tekanan Rendah: 5 L/menit
• Laju Aliran Tekanan Tinggi: 0,9 L/menit
• Kapasitas Minyak: 7 L
• Tekanan Rendah: 70 Bar
• Tekanan Tinggi: 700 Bar
• Berat Kemasan: 24.8 kg
• Dimensi Kemasan: 36.5x27.5x45.5 mm
